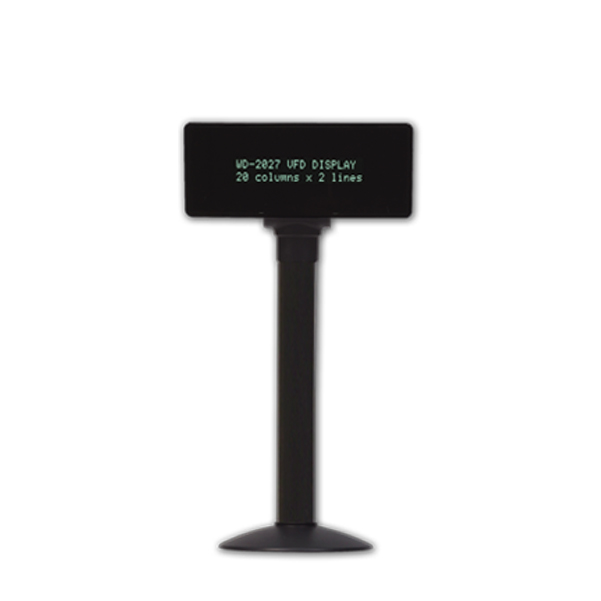

WD-2027 VFD Customer Display

Compact 20x2 Multi-Command Emulation Powered by USB

The WD-2027 is an ultra-compact standalone VFD customer display designed for modern checkout counters. It features a bright, high-contrast 20-column by 2-line screen that ensures clear readability even in well-lit environments. With 0–45° tilt, 270° horizontal swivel, and three pole-height options, it easily adapts to any counter layout and viewing angle. Powered directly via USB, the WD-2027 eliminates external power adapters to keep checkout areas clutter-free. It supports multiple international character sets and boasts a 30,000-hour MTBF, making it a reliable, space-saving choice for retail boutiques, specialty shops, and beverage chains.

Download Datasheet

Technical Specifications

Item	Description
Display Method	VFD display (blue-green)
Number of Columns	20 columns × 2 lines
Brightness	Min. 500 cd/m² / Typ. 1,000 cd/m²
Character Structure	5 × 7 dots
Character Size	3.75 (W) × 6.75 (H) mm
Character Sets	96 alphanumeric, 13 international character sets, 1 user-defined character set, 14 code pages
Commands	ESC/POS, CD5220, DSP-800, AEDEX, ADM788, UTC (Standard / Enhanced), POS7300 compatible
MTBF	30,000 hours (power-on time)
View Angle	0° ~ 45°
Rotation Angle	Max. 270°
Power Supply	DC 5 V (USB powered)
Power Consumption	2.0 W
Interface	USB
Weight	478 g
Dimensions (Long Pole)	176.0 (W) × 130.0 (D) × 355.0 (H) mm
Dimensions (Middle Pole)	176.0 (W) × 130.0 (D) × 244.0 (H) mm

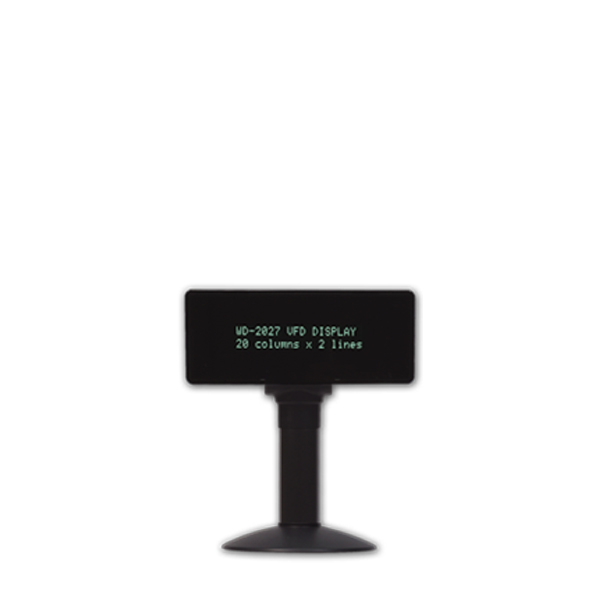

Dimensions (Short Pole)	176.0 (W) × 130.0 (D) × 135.0 (H) mm
Operating Temperature	0 ~ 45 °C
Storage Temperature	-20 ~ 60 °C
Operating Humidity	10% ~ 90% RH
Storage Humidity	10% ~ 90% RH
