WP-T8009 MQTT Thermal Printer

Japan Printhead MQTT 250 mm/s Fast Print Heavy-Duty

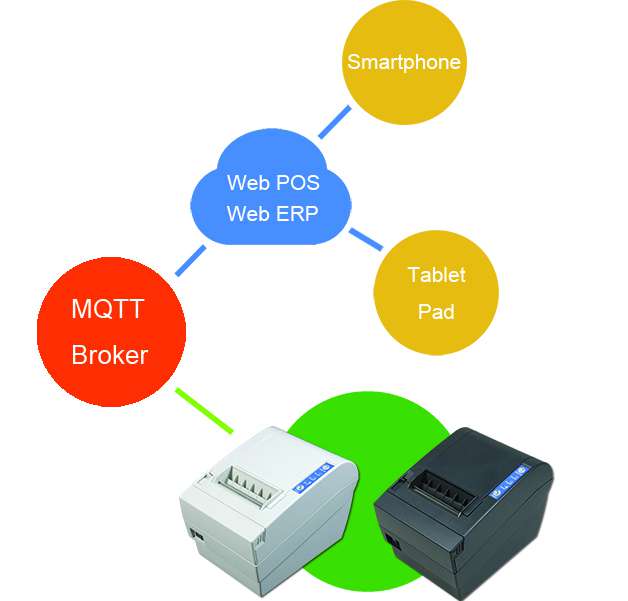

Carrying forward the acclaimed rugged structural design of the WP-800 series, the WP-T8009 is a 3-inch heavy-duty thermal receipt printer purpose-built for smart IoT and demanding commercial environments. Supporting both 80 mm and 58 mm paper rolls, it features a 100 km printhead lifespan, an auto-cutter rated for 1 million cuts, and integrated status protections for cutter jams, cover opening, overheating, and paper out—effortlessly handling intensive, continuous receipt issuance. In core connectivity and smart integration, the WP-T8009 delivers next-generation advantages. Coming standard with dual USB and Ethernet interfaces, it provides native Unicode support to eliminate the complexity of transmitting and printing multilingual character sets across global deployments. Crucially, it integrates the MQTT protocol for cloud-based receipt printing and remote IoT print monitoring. Beyond compatibility with standard ESC/POS command sets, it incorporates Winpos's proprietary and user-friendly WinPOS Smart Print command set, significantly shortening development cycles for software integrators. The WP-T8009 stands as the premier choice for retail chains, cloud-connected smart kitchens, and diverse IoT point-of-sale applications.

Download Datasheet

Technical Specifications

Item	Description
Print Method	Direct thermal
Print Speed	220 mm/s
Commands	WinPOS Smart Print command and ESC/POS compatible
Drivers / Software	Windows, Linux drivers, and Android SDK
Resolution	203 dpi
Character Sets	Unicode
1D Barcodes	UPC-A, UPC-E, EAN-13, EAN-8, Code 39, Code 93, Codabar, Code 128, ITF
2D Barcodes	QR Code
Sensors	Paper end, paper near-end, cover open, printhead overheat, and cutter jam
Paper Type	Thermal paper roll
Paper Width	58 / 80 mm
Paper Roll Size	57.50 ± 0.5 (W) × ⌀83 mm (OD) / 79.50 ± 0.5 (W) × ⌀83 mm (OD)
Paper Thickness	0.05 ~ 0.06 mm
Cash Drawer Port	RJ-11
Printhead Reliability	100 km
Cutter Life	1,000,000 cuts
Receive Buffer	4 KB
SRAM	256 KB
Flash Memory	4 MB (NV Image / External)
Power Supply	DC 24 V / 2.5 A
Interface	USB, Ethernet (MQTT)
Weight	1.44 kg
Dimensions	140.0 (W) × 190.0 (D) × 135.0 (H) mm
Operating Temperature	0 ~ 45 °C
Storage Temperature	-20 ~ 60 °C
Operating Humidity	10% ~ 90% RH
Storage Humidity	10% ~ 90% RH

Other Features

Print Character & Font Specifications

Item	Alphanumeric (Font A)	Alphanumeric (Font B)	Chinese (Kanji)
Character Structure	12 × 24 dots	9 × 17 dots	24 × 24 dots
Columns (80 mm)	48 cpl	64 cpl	24 cpl
Columns (58 mm)	34 cpl	45 cpl	17 cpl
Character Size	1.50 (W) × 3.00 (H) mm	1.13 (W) × 2.13 (H) mm	3.00 (W) × 3.00 (H) mm
