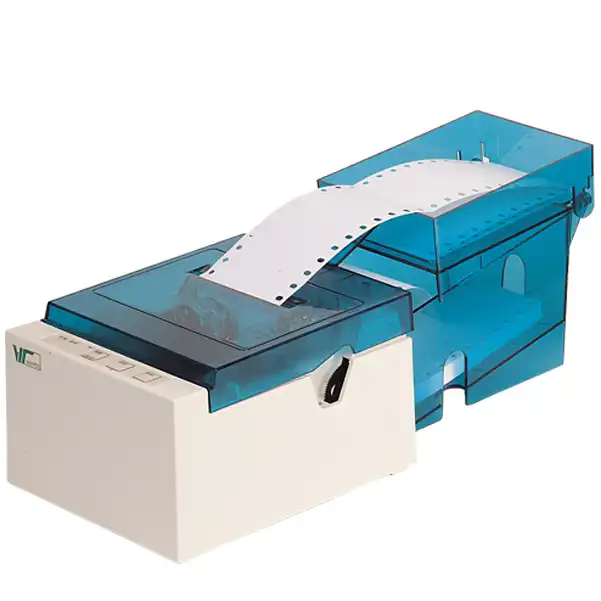

WP-103J2 Dot Matrix Printer

Sprocket Print Multipart Printing Japanese Font

The WP-103J2 is a reliable dot matrix printer designed for multipart forms. Building upon the proven durability of the WP-103s, it combines a precise sprocket feed mechanism with robust impact technology to deliver crisp, multi-ply copies with smooth paper handling. With built-in Japanese character printing support, a rugged build, and broad POS and ERP system compatibility, the WP-103J2 is the ideal solution for corporate invoices, receipts, and multi-part business forms.

Download Manual Download Datasheet

Technical Specifications

Item	Description
Print Method	9-Pin Serial Impact Dot Matrix
Print Speed	3.6 lps
Paper Feed Speed	20.0 lps
Emulation / Commands	ESC/POS, Star command compatible, Windows driver support
Character Sets	Traditional Chinese (Big-5) or Japanese (Shift-JIS)
Sensors	Paper end (paper load), cover open, and printhead lock error
Paper Type	Sprocket Paper
Paper Width	76.0 / 89.0 mm
Single Sheet Thickness	0.06 ~ 0.09 mm
Total Paper Thickness	Max. 0.24 mm
Copy Capability	1 Original + 2 Copies
Paper Feed Pitch (Forward)	4.23 mm (1/6 inch)
Paper Feed Pitch (Backward)	0.705 mm (4/144 inch)
Cash Drawer Control	1 × RJ-11 port (controls up to 2 drawers)
Mechanism Reliability	MCBF 8,000,000 lines
Receive Buffer	8 KB
Power Supply	DC 24 V / 2.5 A
Interface	Built-in RS-232 / Optional: USB, Parallel (LPT), Bluetooth (SPP 3.0) interface card
Weight	1.73 kg
Printer Dimensions	165.0 (W) × 195.0 (D) × 112.0 (H) mm
Storage Box Dimensions	105.0 (W) × 215.0 (D) × 155.0 (H) mm
Operating Temperature	0 ~ 45 °C
Storage Temperature	-20 ~ 60 °C
Operating Humidity	10% ~ 90% RH
Storage Humidity	10% ~ 90% RH

Paper Width	Alphanumeric		Chinese (Kanji)
Paper Width	7 × 7 dots	7 × 9 dots	16 × 16 dots
76.0 mm (324 dots)	36 cpl	29 cpl	20 cpl
89.0 mm (360 dots)	40 cpl	32 cpl	22 cpl

WP-103J2 Dot Matrix Printer

Print Character & Font Specifications
